Pressure-wind tracker

Overview

The pressure-wind tracker (tracking_method: "wind_pressure") estimates the cyclone center at each time step using a sequential two-stage procedure combining:

  1. a pressure-based first guess from mean sea-level pressure (MSLP),

  2. a wind-based refinement using the 10 m wind speed magnitude.

The tracker outputs a time series of cyclone center indices (cy, cx) in the model grid.

Required input fields

This tracker requires the following variables to be available in the dataset:

  • Mean sea-level pressure (MSLP),

  • 10 m zonal wind component,

  • 10 m meridional wind component.

Algorithm

Notation

Let:

  • mslp(t, y, x) be the MSLP field at time index t,

  • u10(t, y, x), v10(t, y, x) be the 10 m wind components,

  • W(t, y, x) = sqrt(u10^2 + v10^2) be the 10 m wind speed magnitude,

  • (cy_t, cx_t) be the cyclone center indices at time t,

  • half_search be the half-width of the MSLP search window,

  • half_refine be the half-width of the wind refinement window.

Sequential procedure

The procedure is defined as follows.

Initialization (t = 0)

  1. MSLP first guess: compute the global minimum of MSLP at t = 0, yielding a first-guess index pair (cy_fg, cx_fg).

  2. Wind refinement: build a sub-window centered on the first guess with half-width half_refine and select the minimum of wind speed magnitude W inside that window.

    • If the refinement sub-window contains only missing values, the wind minimum is computed over the full domain.

  3. Store the resulting indices as (cy_0, cx_0).

Tracking for t >= 1

For each time step t = 1..nt-1:

  1. Restricted MSLP search around previous center: define a search window centered on (cy_{t-1}, cx_{t-1}) with half-width half_search and compute the minimum of MSLP in that window.

    • If this MSLP sub-window contains only missing values, the MSLP minimum is computed over the full domain.

    The corresponding minimum defines the pressure-based first guess (cy_fg, cx_fg).

  2. Wind refinement around the MSLP first guess: define a refinement window centered on (cy_fg, cx_fg) with half-width half_refine and compute the minimum of wind speed magnitude W in that window.

    • If the wind sub-window contains only missing values, the wind minimum is computed over the full domain.

  3. Store the refined indices as (cy_t, cx_t) and proceed to the next time step.

Output

The core tracking function returns two 1D arrays:

  • cy(time): row index of the estimated center,

  • cx(time): column index of the estimated center,

both returned as integers and packaged in an xarray.Dataset:

xr.Dataset({"cy": cy, "cx": cx})

Window sizes and conversion from physical radii

The tracker class defines two physical radii (in kilometers):

  • SEARCH_RADIUS_KM = 150.0: MSLP search radius around the previous center,

  • REFINE_RADIUS_KM = 50.0: wind refinement radius around the MSLP first guess.

These radii are converted into grid-point half-widths using the grid spacing provided in the simulation configuration.

Given the grid spacing resolution (assumed to be in meters in the configuration), the tracker computes:

  • resolution_km = resolution / 1000,

  • half_search = ceil(SEARCH_RADIUS_KM / resolution_km),

  • half_refine = ceil(REFINE_RADIUS_KM / resolution_km),

and enforces a minimum value of 1 grid point for both.

Configuration and usage

To activate this tracker in the YAML configuration, set:

tracking_method: "wind_pressure"

Illustration

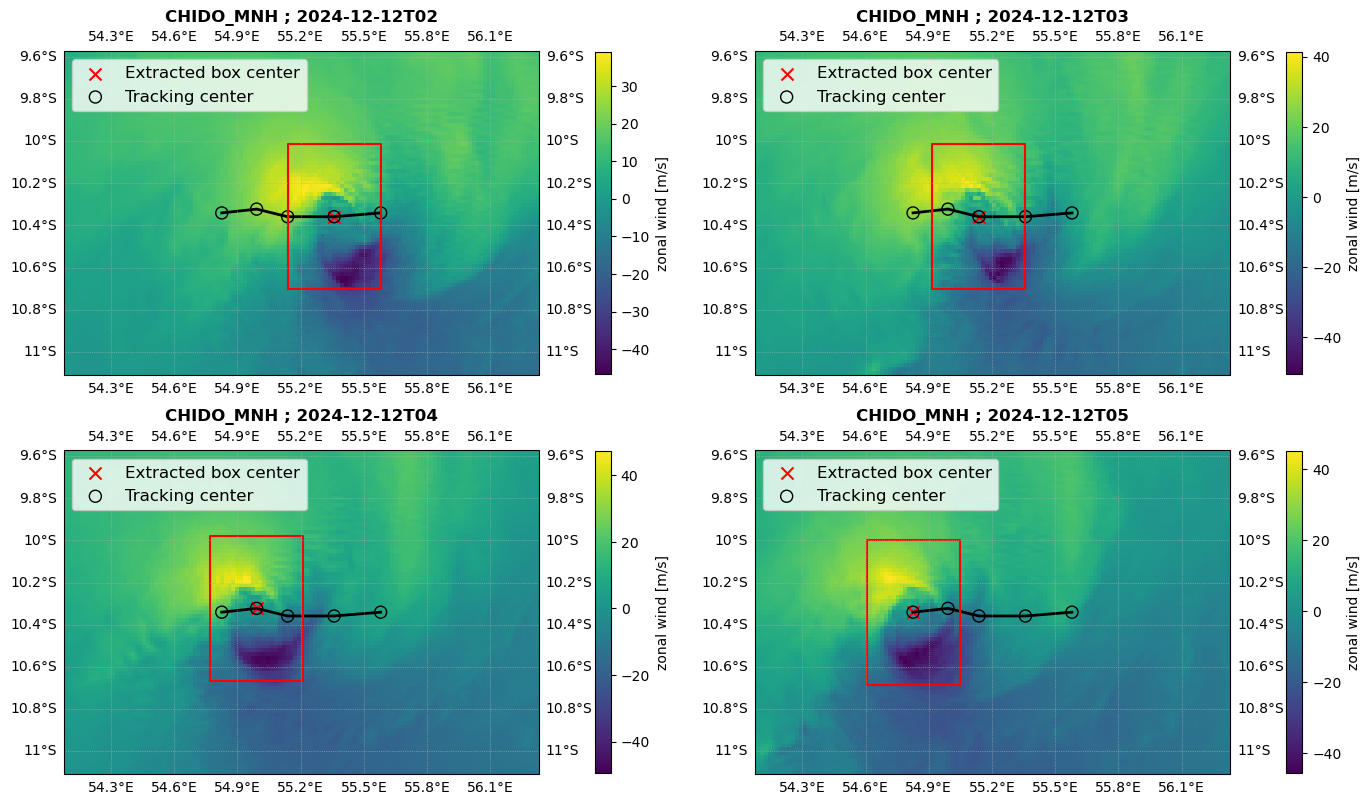

Here is an illustration for the tropical cyclone CHIDO, using the wind_pressure tracking method, and a box define by x_boxsize_km: 50.0 and y_boxsize_km: 75.0 The red line shows the extracted box.

../_images/Fig.tracking_Chido.png

Example of tracking and extraction using the wind_pressure tracking method.
